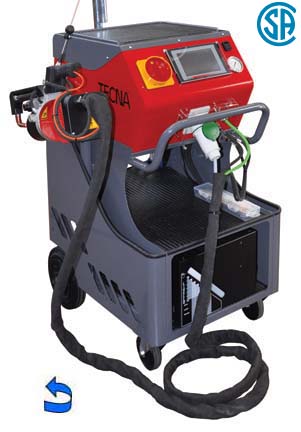

The SMART Spot Welder by TECNA

A SMART Resistance spot welding system, controlled by a microprocessor, designed for auto body repair shops.
The welding control unit with digital touch-screen enables to display and check all the welding parameters according to the type of tool, the type and thickness of  sheets to be welded.

On AUTO Mode:
The Welding gun, once in touch with the metal(s) to be welded sets all of the parameters of the machine
It will recognize the type and thickness of metal(s) and set the appropriate parameters, force, weld time and power to assure a perfect spot weld each time.
No guessing! Set on Auto Mode and save time while being certain of a perfect job.

The built in transformer in the gun makes it possible to have a long cable, lightweight and without any EMF emissions to adversely affect your health, while saving you over 60% in energy costs.

The 3664P Smart Spot Welder also is programmable by way of an SD Card or by Wi-Fi directly from your computer.
The SD Memory Card feature makes it possible to record each job and file same for future reference.

The weld gun has quick connection devices. Thus, it is possible to easily change the arms without the use of keys, tools and screws;  It is a fully water-cooled welding tool, transformer, arms and electrodes, by means of a closed circuit cooling system placed on the trolley of the machine.

You also save on electrical installation costs as the 3664P only needs a 60 Amp breaker, unlike most competitors’ units that require much higher amperages and higher electrical installation costs.

The 3664P Smart Spot Welder has the most coveted OEM approvals as BMW, Mercedes-Benz, Volkswagen, GM, Chrysler, Nissan, Volvo, Subaru, Mitsubishi, Hyundai, Suzuki etc...

220V, 3 Phase, 50/60Hz
Mains protection (delayed)   A25-32
Protection degree                   IP21
Weight  kg  130

Weld  Gun
Nominal power at 50%    kVA 12
Maximun welding power   kVA17
Maximum secondary current   kA14
Thermal current 100%    kA1.8
No load secondary voltage   V8.7
Max. electrode force        daN450
Recognition sensor-             SS
Protection degree            IP21

72000 - Kit of accessories and consumable included

5235K - 36 Type A and 16 type E caps

Additional C-Arms/Eletrodes additionnels
